[1] Visual cryptography¶
objectives¶
Let's present the Shamir and Naor ideas to encrypt a message in a secure way such that the decrypting does not require any computers or calculations.
Idea¶
The big idea is to encrypt an image on two separate transparents. When the two transparents are stack togheter, the original image can be recover.
First transparent¶
img = produce_image_layer_from_real_image("image_sqrpnt.png")
shares = img.produce_two_shares_from_image()
plot_matrix(shares[0], title='first transparent')
Second transparent¶
plot_matrix(shares[1], title='second transparent')
Stacking the two transparents togheter¶
sum_of_the_shares = shares[0] * shares[1] # note that matplotlib associates 0 to black and 1 to white
plot_matrix(sum_of_the_shares, title="both transparents")
remarks¶
The person that creates encrypt the message is called the dealer
One of the transparent can be called the cypher and the other the key.
A crytosystem is said to be secure if, without the key, it impossible to know the original message from the cypher.
Let's look at what happend¶

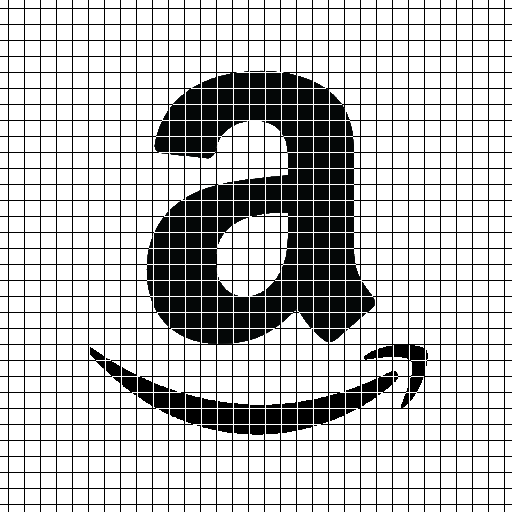

We splitted the image into many pixels¶
construct transparent methodology¶
We construct each transparent in a pixel by pixel fashion.
fig, (ax0, ax1, ax2 ) = plt.subplots(ncols=3)
img=matplotlib.image.imread('sqrpnt_logo.png')
do_not_show_axis(ax0)
ax0.imshow(img)
show_sub_pixel([[white]*10]*10, ax=ax1, title="transparent 1")
show_sub_pixel([[white]*10]*10, ax=ax2, title="transparent 2")
Encrypting each pixels¶
To encrypt a pixel, we'll decompose it in $m$ sub-pixel. Each sub-pixel can be black or white.
The humain eye will approximate the $m$ sub-pixel in a pixel
If there are enought black sub-pixels, the eye will see a black pixel
If there are not enought of black sub-pixels, the eye will see a white pixel
fig, (ax0, ax1, ax2 ) = plt.subplots(ncols=3)
show_sub_pixel([[black, black, black],
[black, black, black],
[black, black, black]],
ax=ax0,
title="a black pixel")
show_sub_pixel([[white, black, black],
[black, black, white],
[white, black, black]],
ax=ax1,
title="a black pixel")
show_sub_pixel([[white, white, black],
[white, black, white],
[white, black, white]],
ax=ax2,
title="a white pixel")
techinical objectives¶
To help the humain, we need the black to be as dark as possible and the white to be as bright as possible
black pixel¶
A pixel is said to be black if it is made of at least $d \leq m$ black sub-pixels
white pixel¶
A pixel is said to be white if it is made of no more than $d - \alpha m$ black sub-pixels
remarks¶
$m$ is the number of sub-pixels in a pixel
Bigger $d$ is, darker the blacks are
Bigger $\alpha$ is, brighter the whites are.
$\alpha$ represent here a "distance" between the white and black. Greather this distance will be easier it will be to distinguist between the blacks and whites
import matplotlib as mpl
fig, ax = pylab.subplots()
cmap = mpl.cm.gray_r
norm = mpl.colors.Normalize(vmin=5, vmax=10)
cb = mpl.colorbar.ColorbarBase(ax, cmap=cmap,
norm=norm,
orientation='horizontal')
ax.set_axis_off()
ax.text(0.9, 0.5, 'black',
horizontalalignment='center',
verticalalignment='center',
rotation='vertical',
size="20",
color="white",
transform=ax.transAxes)
ax.text(0.1, 0.5, 'white',
horizontalalignment='center',
verticalalignment='center',
rotation='vertical',
size="20",
color="black",
transform=ax.transAxes)
pylab.show()
encryption¶
In a way or an other, for each pixel we figured out sub-pixel to place on each transparent such that.
when stacked, they form the the original image
with only one transparent, it is impossible to know what is the original image
fig, (ax0, ax1, ax2 ) = plt.subplots(ncols=3)
plot_matrix(shares[0], title='first transparent', ax=ax0)
plot_matrix(shares[1], title='second transparent', ax=ax1)
plot_matrix(shares[1] * shares[0], title='stacked transparents', ax=ax2)
Some formalization¶
Definition of a pixel structure¶
We encode a pixel in an array of size $m$, $[ p_1, p_2, \dots, p_m ]$
where $i$ represents a specific sub-pixel position
the $i^th$ sub-pixel is black is $p_i$ is $1$ and white if $p_i$ is $0$
show_sub_pixel([[black, white, black],
[white, black, white],
[white, white, white]], title="[1 0 1 0 1 0 0 0 0]")
transparent superposition¶
Consequently the transparent superposition can be seen as componentwise or operation
[1 0 1 0 ]
+ [1 1 0 0 ]
-----------------------
[1 1 1 0 ]fig, (ax0, ax1, ax2, ax3, ax4 ) = plt.subplots(ncols=5)
show_sub_pixel([[black, white],
[black, white]], title="[1 0 1 0]", ax=ax0)
show_text("+", ax1)
show_sub_pixel([[black, black],
[white, white]], title="[1 1 0 0]", ax=ax2)
show_text("=", ax3)
show_sub_pixel([[black, black],
[black, white]], title="[1 1 1 0]", ax=ax4)
encryption...¶
How can we encode a pixel $P$ (black or white) in two pixels $Q_1$ $Q_2$ such that...
$Q_1 + Q_2 \sim P$
Without having access to $Q_1$ and $Q_2$, we grain no knowledge on $P$
$A \sim B$ if $A$ is the same colour as $B$
solution¶
We create two sets
$W = \{ (r_1, l_1) , (r_2, l_2), \dots, (r_k, l_k) \}$
$K = \{ (g_1, d_1) , (g_2, d_2), \dots, (g_k, d_k) \}$
such that...
$r_i + l_i$ is white
$g_i + d_i$ is black
The cardinality of $x$ in the multiset $\{r_1, l_1, \dots r_k, l_k\}$ is the same in the multiset $\{g_1, d_1, \dots g_k, d_k\}$.
A working example¶
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b, c, d : [[a, b], [c, d]]
w, b = white, black
show_text("white={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b, w, b), pixel(w, b, w, b), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w, b, w), pixel(b, w, b, w), axs[8:])
show_text("}", axs[13])
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b, c, d : [[a, b], [c, d]]
w, b = white, black
show_text("black={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b, w, b), pixel(b, w, b, w), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w, b, w), pixel(w, b, w, b), axs[8:])
show_text("}", axs[13])
An other working example¶
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b, c, d : [[a, b], [c, d]]
w, b = white, black
show_text("white={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b, b, w), pixel(w, b, b, w), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w, w, b), pixel(b, w, w, b), axs[8:])
show_text("}", axs[13])
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b, c, d : [[a, b], [c, d]]
w, b = white, black
show_text("black={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b, b, w), pixel(b, w, w, b), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w, w, b), pixel(w, b, b, w), axs[8:])
show_text("}", axs[13])
A simpler working example¶
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b : [[a, b]]
w, b = white, black
show_text("white={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b), pixel(w, b), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w), pixel(b, w), axs[8:])
show_text("}", axs[13])
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b : [[a, b]]
w, b = white, black
show_text("black={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b), pixel(b, w), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w), pixel(w, b), axs[8:])
show_text("}", axs[13])
A possible attack?¶
Yes!¶
the last person that shows its transparent can cheat.¶
By crafting its own transparent, knowing the other transparent, a cheater could show whatever he wants as a results
cheated = produce_image_layer_from_real_image("cheatedimage_sqrpnt.png")
cheated_share = cheated.produce_cheated_image_from_other_share(shares[0])
plot_matrix(cheated_share , title='crafted transparent')
savefig("crafted_transparen.pdf")
plot_matrix(cheated_share * shares[0], title='forged result')
the problem¶
Alice wants to share his swiss bank account number with Bob TheFirst, Bob TheSecond, Bob TheThird,... Bob TheNth such that...
If any $k$ Bobs comes togheter they need to be able to recover the bank account number
If any less that $k$ Bobs comes togheter they need to have no idea whatsoever about the bank account number
***********
***** ***********
** ****** *** ********
**** ****** ** *******
*** ******* ** ******
*** ** * **
*|/------ -------\ ** *
| |=| :===**
| O | | O | }|*
|---- | ---- | |*
| |___ |\/
| |
\ ----- |
\ |
-__ -- -/shamir solution: use polynomials!¶
definition¶
A polynomial is a function that can be written as
$$ a_0 + a_1 \cdot x^1 + a_2 \cdot x^2 + \dots + a_n \cdot x^n $$fig, (ax0, ax1, ax2) = plt.subplots(ncols=3)
plot_function(lambda x : 2 * x + 1, title="$2 \cdot x + 1$", ax=ax0)
plot_function(lambda x : 2 * x**2 + 1, title="$2 \cdot x^2 + 1$", ax=ax1)
plot_function(lambda x : 2 * x**3 - 2 * x**2 + 1, title="$2 \cdot x^3 - 2 \cdot x^2 + 1$", ax=ax2)
important feature of polynomials¶
Any $n + 1$ points define an unique polynomials of degre $n$.
fig, (ax0, ax1, ax2) = plt.subplots(ncols=3)
p = lambda x : 2 * x + 1
plot_function(p, title="$2 \cdot x + 1$", ax=ax0)
ax0.plot([-7, 7] , [p(-7), p(7)], "ro")
p = lambda x : 2 * x**2 + 1
plot_function(p, title="$2 \cdot x^2 + 1$", ax=ax1)
ax1.plot([-7, 0, 7], [p(-7), p(0), p(7)], "ro")
p = lambda x : 2 * x**3 - 2 * x**2 + 1
plot_function(p, title="$2 \cdot x^3 - 2 \cdot x^2 + 1$", ax=ax2)
ax2.plot([-7, -3, 3, 7], [p(-7), p(-3), p(3), p(7)], "ro")
show()
Similarly,¶
by $n$ points pass an infinite number of polynomials of degree $n$
fig, ax = plt.subplots()
b = 0
d = 1
c = lambda a : -100 - 7**2 * a
P = lambda a : (lambda x: a * x**3 + b * x**2 + x * c(a) + d)
for i in range(-12, 12, 3):
plot_function(P(i), ax=ax)
p = P(1)
ax.plot([-7, 0, 7] , [p(-7), p(0), p(7)], "ro")
ax.set_title("Polynomials passing through $(-7, 701), (0, 1), (7, -699)$")
None
Shamir's secret sharing¶
- Alice needs to create a random polynomial of degre $k-1$ such that $a_0$ is the secret to share.
- Alice gives to each Bob TheIth the couple $(i, P(i))$
secret recovery¶
If $K$ bob comes togheter, they can figure out the secret polynomial $P(x)$ and compute $P(0)$
interesting facts¶
- the number $n$ needs not to be known at first. (Additional bobs can come and join the party!)
- the number $k$ is fixed forever
- the fact that we evaluate $P(x)$ at $0$ helps tremendously in the algebraic resolution of the problems
- the Shamir's secret sharing is at the base of almost every "threshold" cryptography
small example to see if everything works¶
Francis wants to share between Valentin and Didier the
company's credit card: 5243 9021 9129 1828.
step 1¶
Francis chooses the bellow polynomials because he likes it very much
$$P(X) = 5243902191291828 + 7873787349\cdot x + 7893478934\cdot x^2$$step 2¶
- Peter gives $(1, 5243917958558111)$ to Valentin
- Peter gives $(2, 5243949512782262)$ to Didier
As we all expect...¶
Didier will try to figure out the credit card number to buy a truck load of beer.
Can Didier acheve its goal?¶
Let's resume what Didier knows¶
He knows that he is looking for a number $a_0$ of 12 digits
$a_0$ is positive
$a_0$ is an integer
But if didier does a little bit of algebra...¶
... $$P(x) = a_0 + a_1 \cdot x + a_2 \cdot x^2 $$ $$5243949512782262 = a_0 + a_1 \cdot 2 + a_2 \cdot 4 $$ $$a_0 = 5243949512782262 - a_1 \cdot 2 - a_2 \cdot 4$$ $$a_0 = 5243949512782262 - 2\cdot(a_1 \cdot - 2 \cdot a_2)$$ $$a_0 = 5243949512782262 - \text{even number}$$
Hence...¶
Didier knows the credit card number is even
With the help of EC2 Didier can find the solution in a relative small amount of time.
What can we do to avoid such situation?¶
We could process the original message before wharing it
$$\underbrace{xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx}_\text{very random number}\underbrace{5243902191291828}_\text{the credit card number}$$
We could work in a more appropriate field
$$\mathbb{Z}/p\mathbb{Z}$$
What is $\mathbb{Z}/p\mathbb{Z}$ ?¶
- $p$ is (very large) prime
- $\mathbb{Z}/p\mathbb{Z}$ is the set of all the integers between $0$ and $p-1$
- we can add two elements of $\mathbb{Z}/p\mathbb{Z}$ as usual. If the result is larger than $p$ we loop using the modulo operation
- we can multiply two elements of $\mathbb{Z}/p\mathbb{Z}$ as usual. If the result is larger than $p$ we loop using the modulo operation
Uber important things¶
- Almost everything you know about the "numbers" is still true in $\mathbb{Z}/p\mathbb{Z}$
- In particular, each element has a multiplicative inverse
example $\mathbb{Z}/7\mathbb{Z}$¶
| x | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1 | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| 2 | 0 | 2 | 4 | 6 | 1 | 3 | 5 |
| 3 | 0 | 3 | 6 | 2 | 5 | 1 | 4 |
| 4 | 0 | 4 | 1 | 5 | 2 | 6 | 3 |
| 5 | 0 | 5 | 3 | 1 | 6 | 4 | 2 |
| 6 | 0 | 6 | 5 | 4 | 3 | 2 | 1 |
| + | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| 0 | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| 1 | 1 | 2 | 3 | 4 | 5 | 6 | 0 |
| 2 | 2 | 3 | 4 | 5 | 6 | 0 | 1 |
| 3 | 3 | 4 | 5 | 6 | 0 | 1 | 2 |
| 4 | 4 | 5 | 6 | 0 | 1 | 2 | 3 |
| 5 | 5 | 6 | 0 | 1 | 2 | 3 | 4 |
| 6 | 6 | 0 | 1 | 2 | 3 | 4 | 5 |
back to polyominals... (but int $\mathbb{Z}/p\mathbb{Z}$)¶
fig, (ax0, ax1, ax2) = plt.subplots(ncols=3)
plot_function_in_finite_field(lambda x : (2 * x + 1) % 7, title="$2 \cdot x + 1$ mod 7", ax=ax0)
plot_function_in_finite_field(lambda x : (2 * x**2 + 1) % 7, title="$2 \cdot x^2 + 1$ mod 7", ax=ax1)
plot_function_in_finite_field(lambda x : (2 * x**3 - 2 * x**2 + 1) % 7, title="$2 \cdot x^3 - 2 \cdot x^2 + 1$ mod 7", ax=ax2)
The main two polyominals facts are still (almost) true¶
Any $n + 1$ points define an unique polynomial of degre $n$.¶
fig, ax = plt.subplots()
f = lambda x : (2 * x**3 - 2 * x**2 + 1) % 7
plot_function_in_finite_field(f, title="$2 \cdot x^3 - 2 \cdot x^2 + 1 mod 7$", ax=ax)
ax.plot([-7, 0, 7], [f(-7), f(0), f(7)], 'rD')
None
By $n$ points pass $p$ polyomials of degree $n$.¶
fig, ax = plt.subplots()
b = 0
d = 1
c = lambda a : -100 - 7**2 * a
P = lambda a : (lambda x: (a * x**3 + b * x**2 + x * c(a) + d) % 7)
for i in range(-12, 12, 3):
plot_function_in_finite_field(P(i), ax=ax)
p = P(1)
ax.plot([-7, 0, 7] , [p(-7), p(0), p(7)], "ro")
ax.set_title("Polynomials passing through $(-7, 1), (0, 1), (7, 1)$")
None
back to Shamir's secret sharing¶
If Francis would have choosen polynomials in $\mathbb{Z}/p\mathbb{Z}$ with $p$ big enough...
Didier could not have easely discarted some numbers
For Didier, a large $p$ in infinite even with the help of $aws$
[3] Password alternative¶
The objective of this sections is to present the idea of the article how to proof yourself, an article publish by Fiat and Shamir in the year of grace 1987.
Idea¶
The idea is to be able to proof the knowledge of something an information revealing how come we know it.
To prove that you know how to cook a carrot cake without providing one
To prove that you can decrypt a message without revealing the message
Objective¶
The objective is to find a way to allow Susie to authenticate to Calvin such that...
Susie can proof legetimate knowledge
Calvin is sure that Susie cannot cheet
Calvin does not lean any additional information
fig, (ax0, ax1, ax2 ) = plt.subplots(ncols=3)
img = matplotlib.image.imread('susie.png')
do_not_show_axis(ax0)
ax0.imshow(img)
do_not_show_axis(ax1)
img = matplotlib.image.imread('calvin.gif')
do_not_show_axis(ax2)
ax2.imshow(img)
None
In the contect of a zero-knoledge proof with the proper wording...¶
Completness
- The prover will be able to convince the verifier
Soundness
- The verifier will not get scammed by a malicious prover
Zero-knowledge
- The prover will not transmit other knowledge than the wanted fact
Authentication¶
Normal login procedure¶
Sign up and send your password
username:
didierpassword:******The server keeps the the hash of your password
user = {"username": "didier", "hash": "cXdlcnR5MTIzNA=="}Each time you authenticate, the server verifies that the password you provides hashed to the same value
assert hash(password) == user["hash"]
Authentication with zero knowledge proof¶
Sign up and send the hash of your password
totally private password:
******username:didierhash:cXdlcnR5MTIzNA==The server keeps the the hash
user = {"username": "didier", "hash": "cXdlcnR5MTIzNA=="}Each time you authenticate, there is a dance between the you and the server to allow the server to gain the knowledge that you know something that
how can we do that?¶
Bob and Alice exchange some information while they know they are talking to the each other (sign up)
In that exchange, Alice will tell Bob that she knows something
Each time Alice will authenticate, Alice will provide enough information to Bob to demonstrate that she knows the information but without giving any factual proofs.
quadratic residue¶
There are some problems that are easy to solve in $\mathbb{R}$ but very hard to solve in $\mathbb{Z}/n\mathbb{Z}$
quadratic residue¶
The quandratric residue of $x$ in $\mathbb{Z}/n\mathbb{Z}$ is an element $y$ such that $x^2 = y$
We say that $y$ is a quadratic residue if there exists $x$ such that $x^2 = y$
facts¶
Not every element is a quadratic residue
It is hard to know if a number is a quadratic residue
It is easy to find a quadratic residue: just take a random $r$ and compute $r^2$
Proving ourselves with quadratic residues...¶
idea¶
The idea is that Sussie will demonstrate to Calvin that she knows that a certain element $x$ is a quadratic residue without giving $\omega$ such that $\omega ^2 = x$
protocol...¶
| Susie | Calvin |
|---|---|
| chose a random $r$ | |
| sends $a = r^2$ | |
| send challenge a or b at random | |
| if challenge is a returns r | accept if $r^2 = a$ |
| if challenge is b returns $r\cdot\omega$ | accept is $(r\cdot\omega)^2 = a \cdot x$ |
completeness: If Alice plays the game, she will be to proof that she is herself with probability 1
soundness: Bob as a probablylity $1/2$ to catch a cheeter, he needs to repeat the protocol until he is convinced
zero-knowledge: Proof by intimidation
