presentation overview
[1] Visual cryptography
Encrypting information in a 100% visual way.
[2] Sharing a secret
Sharing a secret between $n$ persons such that any subset of size $k$ can recover it.
[3] Password alternative
Using a zero knowledge proof to authenticate ourself to a third party.
[1] Visual cryptography
objectives
Let's present the Shamir and Naor ideas to encrypt a message in a secure way such that the decrypting does not require any computers or calculations.
Idea
The big idea is to encrypt an image on two separate transparents. When the two transparents are stack togheter, the original image can be recover.
First transparent
img = produce_image_layer_from_real_image("image.png")
shares = img.produce_two_shares_from_image()
plot_matrix(shares[0], title='first transparent')
Second transparent
plot_matrix(shares[1], title='second transparent')
Stacking the two transparents togheter
sum_of_the_shares = shares[0] * shares[1] # note that matplotlib associates 0 to black and 1 to white
plot_matrix(sum_of_the_shares, title="both transparents")
remarks
The person that creates encrypt the message is called the dealer
One of the transparent can be called the cypher and the other the key.
A crytosystem is said to be secure if, without the key, it impossible to know the original message from the cypher.
Let's look at what happend
We started by an image
This image is said as the message

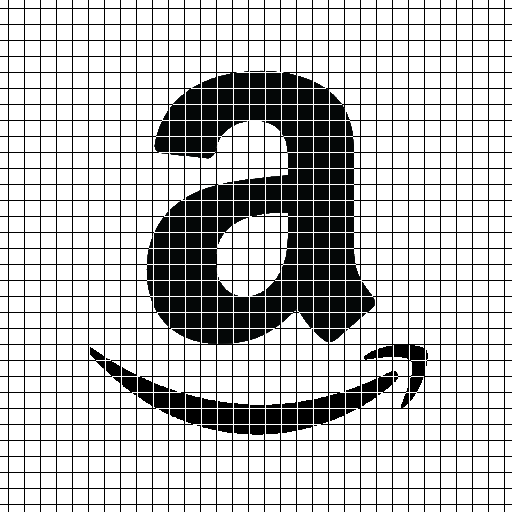

We splitted the image into many pixels
constructe transparent methodology
We construct each transparent in a pixel by pixel fashion.
fig, (ax0, ax1, ax2 ) = plt.subplots(ncols=3)
img=matplotlib.image.imread('image.png')
do_not_show_axis(ax0)
ax0.imshow(img)
show_sub_pixel([[blanc]*10]*10, ax=ax1, title="transparent 1")
show_sub_pixel([[blanc]*10]*10, ax=ax2, title="transparent 2")
Encrypting each pixels
To encrypt a pixel, we'll decompose it in $m$ sub-pixel. Each sub-pixel can be black or white.
The humain eye will approximate the $m$ sub-pixel in a pixel
If there is enought black sub-pixel, the eye will see a black pixel
If there is not enought of black sub-pixel, the eye will see a white pixel
fig, (ax0, ax1, ax2 ) = plt.subplots(ncols=3)
show_sub_pixel([[noir, noir, noir],
[noir, noir, noir],
[noir, noir, noir]],
ax=ax0,
title="a black pixel")
show_sub_pixel([[blanc, noir, noir],
[noir, noir, blanc],
[blanc, noir, noir]],
ax=ax1,
title="a black pixel")
show_sub_pixel([[blanc, blanc, noir],
[blanc, noir, blanc],
[blanc, noir, blanc]],
ax=ax2,
title="a white pixel")
techinical objectives
To help the humain, we need the black to be as dark as possible and the white to be as bright as possible
black pixel
A pixel is said to be black if it is made of at least $d \leq m$ black sub-pixels
white pixel
A pixel is said to be white if it is made of no more than $d - \alpha m$ black sub-pixels
remarks
$m$ is the number of sub-pixels in a pixel
Bigger $d$ is, darker the blacks are
Bigger $\alpha$ is, brighter the whites are.
$\alpha$ represent here a "distance" between the white and black. Greather this distance will be easier it will be to distinguist between the blacks and whites
import matplotlib as mpl
fig, ax = pylab.subplots()
cmap = mpl.cm.gray_r
norm = mpl.colors.Normalize(vmin=5, vmax=10)
cb = mpl.colorbar.ColorbarBase(ax, cmap=cmap,
norm=norm,
orientation='horizontal')
ax.set_axis_off()
ax.text(0.9, 0.5, 'black',
horizontalalignment='center',
verticalalignment='center',
rotation='vertical',
size="20",
color="white",
transform=ax.transAxes)
ax.text(0.1, 0.5, 'white',
horizontalalignment='center',
verticalalignment='center',
rotation='vertical',
size="20",
color="black",
transform=ax.transAxes)
pylab.show()
encryption
In a way or an other, for each pixel we figured out sub-pixel to place on each transparent such that.
when stacked, they form the the original image
with only one transparent, it is impossible to know what is the original image
fig, (ax0, ax1, ax2 ) = plt.subplots(ncols=3)
plot_matrix(shares[0], title='first transparent', ax=ax0)
plot_matrix(shares[1], title='second transparent', ax=ax1)
plot_matrix(shares[1] * shares[0], title='stacked transparents', ax=ax2)
Some formalization
Definition of a pixel structure
We encode a pixel in an array of size $m$, $[ p_1, p_2, \dots, p_m ]$
where $i$ represents a specific sub-pixel position
the $i^th$ sub-pixel is black is $p_i$ is $1$ and white if $p_i$ is $0$
show_sub_pixel([[noir, blanc, noir],
[blanc, noir, blanc],
[blanc, blanc, blanc]], title="[1 0 1 0 1 0 0 0 0]")
transparent superposition
Consequently the transparent superposition can be seen as componentwise or operation
[1 0 1 0 ]
+ [1 1 0 0 ]
-----------------------
[1 1 1 0 ]
fig, (ax0, ax1, ax2, ax3, ax4 ) = plt.subplots(ncols=5)
show_sub_pixel([[noir, blanc],
[noir, blanc]], title="[1 0 1 0]", ax=ax0)
show_text("+", ax1)
show_sub_pixel([[noir, noir],
[blanc, blanc]], title="[1 1 0 0]", ax=ax2)
show_text("=", ax3)
show_sub_pixel([[noir, noir],
[noir, blanc]], title="[1 1 1 0]", ax=ax4)
encryption...
How can we encode a pixel $P$ (black or white) in two pixels $Q_1$ $Q_2$ such that...
$Q_1 + Q_2 \sim P$
Without having access to $Q_1$ and $Q_2$, we grain no knowledge on $P$
$$ Prob(\text{P is white} | Q_i) = Prob(\text{P is black} | Q_i) $$
$A \sim B$ if $A$ is the same colour as $B$
solution
We create two sets
$W = \{ (r_1, l_1) , (r_2, l_2), \dots, (r_k, l_k) \}$
$K = \{ (g_1, d_1) , (g_2, d_2), \dots, (g_k, d_k) \}$
such that...
$r_i + l_i$ is white
$g_i + d_i$ is black
The cardinality of $x$ in the multiset $\{r_1, l_1, \dots r_k, l_k\}$ is the same in the multiset $\{g_1, d_1, \dots g_k, d_k\}$.
A working example
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b, c, d : [[a, b], [c, d]]
w, b = blanc, noir
show_text("white={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b, w, b), pixel(w, b, w, b), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w, b, w), pixel(b, w, b, w), axs[8:])
show_text("}", axs[13])
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b, c, d : [[a, b], [c, d]]
w, b = blanc, noir
show_text("black={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b, w, b), pixel(b, w, b, w), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w, b, w), pixel(w, b, w, b), axs[8:])
show_text("}", axs[13])
An other working example
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b, c, d : [[a, b], [c, d]]
w, b = blanc, noir
show_text("white={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b, b, w), pixel(w, b, b, w), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w, w, b), pixel(b, w, w, b), axs[8:])
show_text("}", axs[13])
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b, c, d : [[a, b], [c, d]]
w, b = blanc, noir
show_text("black={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b, b, w), pixel(b, w, w, b), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w, w, b), pixel(w, b, b, w), axs[8:])
show_text("}", axs[13])
A simpler working example
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b : [[a, b]]
w, b = blanc, noir
show_text("white={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b), pixel(w, b), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w), pixel(b, w), axs[8:])
show_text("}", axs[13])
fig, axs = plt.subplots(ncols=14)
pixel = lambda a, b : [[a, b]]
w, b = blanc, noir
show_text("black={ ", axs[0])
show_text(" ", axs[1])
plot_tuple_of_pixels(pixel(w, b), pixel(b, w), axs[2:])
show_text(",", axs[7])
plot_tuple_of_pixels(pixel(b, w), pixel(w, b), axs[8:])
show_text("}", axs[13])
A possible attack?
Yes!
the last person that shows its transparent can cheat.
By crafting its own transparent, knowing the other transparent, a cheater could show whatever he wants as a results
cheated = produce_image_layer_from_real_image("cheatedimage.png")
cheated_share = cheated.produce_cheated_image_from_other_share(shares[0])
plot_matrix(cheated_share , title='crafted transparent')
savefig("crafted_transparen.pdf")
plot_matrix(cheated_share * shares[0], title='forge results')
the problem
Alice wants to share his swiss bank account number with Bob TheFirst, Bob TheSecond, Bob TheThird,... Bob TheNth such that...
If any $k$ Bobs comes togheter they need to be able to recover the bank account number
If any less that $k$ Bobs comes togheter they need to have no idea whatsoever about the bank account number
***********
***** ***********
** ****** *** ********
**** ****** ** *******
*** ******* ** ******
*** ** * **
*|/------ -------\ ** *
| |=| :===**
| O | | O | }|*
|---- | ---- | |*
| |___ |\/
| |
\ ----- |
\ |
-__ -- -/
shamir solution: use polynomials!
definition
A polynomial is a function that can be written as
$$ a_0 + a_1 \cdot x^1 + a_2 \cdot x^2 + \dots + a_n \cdot x^n $$
fig, (ax0, ax1, ax2) = plt.subplots(ncols=3)
plot_function(lambda x : 2 * x + 1, title="$2 \cdot x + 1$", ax=ax0)
plot_function(lambda x : 2 * x**2 + 1, title="$2 \cdot x^2 + 1$", ax=ax1)
plot_function(lambda x : 2 * x**3 - 2 * x**2 + 1, title="$2 \cdot x^3 - 2 \cdot x^2 + 1$", ax=ax2)
important feature of polynomials
Any $n + 1$ points define an unique polynomials of degre $n$.
fig, (ax0, ax1, ax2) = plt.subplots(ncols=3)
p = lambda x : 2 * x + 1
plot_function(p, title="$2 \cdot x + 1$", ax=ax0)
ax0.plot([-7, 7] , [p(-7), p(7)], "ro")
p = lambda x : 2 * x**2 + 1
plot_function(p, title="$2 \cdot x^2 + 1$", ax=ax1)
ax1.plot([-7, 0, 7], [p(-7), p(0), p(7)], "ro")
p = lambda x : 2 * x**3 - 2 * x**2 + 1
plot_function(p, title="$2 \cdot x^3 - 2 \cdot x^2 + 1$", ax=ax2)
ax2.plot([-7, -3, 3, 7], [p(-7), p(-3), p(3), p(7)], "ro")
show()
Similarly,
by $n$ points pass an infinite number of polynomials of degree $n$
fig, ax = plt.subplots()
b = 0
d = 1
c = lambda a : -100 - 7**2 * a
P = lambda a : (lambda x: a * x**3 + b * x**2 + x * c(a) + d)
for i in range(-12, 12, 3):
plot_function(P(i), ax=ax)
p = P(1)
ax.plot([-7, 0, 7] , [p(-7), p(0), p(7)], "ro")
ax.set_title("Polynomials passing through $(-7, 701), (0, 1), (7, -699)$")
fig.show()
Shamir's secret sharing
- Alice needs to create a random polynomial of degre $k-1$ such that $a_0$ is the secret to share.
$$ P(x) = a_0 + a_1 \cdot x^1 + a_2 \cdot x^2 + \dots + a_{k-1}\cdot x^{x-1} $$
- Alice gives to each Bob TheIth the couple $(i, P(i))$
secret recovery
If $K$ bob comes togheter, they can figure out the secret polynomial $P(x)$ and compute $P(0)$
interesting facts
- the number $n$ needs not to be known at first. (Additional bobs can come and join the party!)
- the number $k$ is fixed forever
- the fact that we evaluate $P(x)$ at $0$ helps tremendously in the algebraic resolution of the problems
- the Shamir's secret sharing is at the base of almost every "threshold" cryptography
small example to see if everything works
Peter wants to share between Wolf and Didier the
ACS's credit card: 5243 9021 9129 1828.
step 1
Peter choose the bellow polynomials because he likes it very much
$$P(X) = 5243902191291828 + 7873787349\cdot x + 7893478934\cdot x^2$$
step 2
- Peter gives $(1, 5243917958558111)$ to Wolf
- Peter gives $(2, 5243949512782262)$ to Didier
As all Canadian can expect...
Didier will try to figure out the credit card number to buy a truck load of maple sirup.
Can Didier acheve its goal?
Let's resume what Didier knows
He knows that he is looking for a number $a_0$ of 12 digits
$a_0$ is positive
$a_0$ is an integer
But if didier does a little bit of algebra...
... $$P(x) = a_0 + a_1 \cdot x + a_2 \cdot x^2 $$ $$5243949512782262 = a_0 + a_1 \cdot 2 + a_2 \cdot 4 $$ $$a_0 = 5243949512782262 - a_1 \cdot 2 - a_2 \cdot 4$$ $$a_0 = 5243949512782262 - 2\cdot(a_1 \cdot - 2 \cdot a_2)$$ $$a_0 = 5243949512782262 - \text{even number}$$
Hence...
Didier knows the credit card number is even
With the help of EC2 Didier can find the solution in a relative small amount of time.
What can we do to avoid such situation?
We could process the original message before wharing it
$$\underbrace{xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx}_\text{very random number}\underbrace{5243902191291828}_\text{the credit card number}$$
We could work in a more appropriate field
$$\mathbb{Z}/p\mathbb{Z}$$
What is $\mathbb{Z}/p\mathbb{Z}$ ?
- $p$ is (very large) prime
- $\mathbb{Z}/p\mathbb{Z}$ is the set of all the integers between $0$ and $p-1$
- we can add two elements of $\mathbb{Z}/p\mathbb{Z}$ as usual. If the result is larger than $p$ we loop using the modulo operation
- we can multiply two elements of $\mathbb{Z}/p\mathbb{Z}$ as usual. If the result is larger than $p$ we loop using the modulo operation
Uber important things
- Almost everything you know about the "numbers" is still true in $\mathbb{Z}/p\mathbb{Z}$
- In particular, each element has a multiplicative inverse
example $\mathbb{Z}/7\mathbb{Z}$
| x | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1 | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| 2 | 0 | 2 | 4 | 6 | 1 | 3 | 5 |
| 3 | 0 | 3 | 6 | 2 | 5 | 1 | 4 |
| 4 | 0 | 4 | 1 | 5 | 2 | 6 | 3 |
| 5 | 0 | 5 | 3 | 1 | 6 | 4 | 2 |
| 6 | 0 | 6 | 5 | 4 | 3 | 2 | 1 |
| + | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| 0 | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| 1 | 1 | 2 | 3 | 4 | 5 | 6 | 0 |
| 2 | 2 | 3 | 4 | 5 | 6 | 0 | 1 |
| 3 | 3 | 4 | 5 | 6 | 0 | 1 | 2 |
| 4 | 4 | 5 | 6 | 0 | 1 | 2 | 3 |
| 5 | 5 | 6 | 0 | 1 | 2 | 3 | 4 |
| 6 | 6 | 0 | 1 | 2 | 3 | 4 | 5 |
back to polyominals... (but int $\mathbb{Z}/p\mathbb{Z}$)
fig, (ax0, ax1, ax2) = plt.subplots(ncols=3)
plot_function_in_finite_field(lambda x : (2 * x + 1) % 7, title="$2 \cdot x + 1$ mod 7", ax=ax0)
plot_function_in_finite_field(lambda x : (2 * x**2 + 1) % 7, title="$2 \cdot x^2 + 1$ mod 7", ax=ax1)
plot_function_in_finite_field(lambda x : (2 * x**3 - 2 * x**2 + 1) % 7, title="$2 \cdot x^3 - 2 \cdot x^2 + 1$ mod 7", ax=ax2)
The main two polyominals facts are still (almost) true
Any $n + 1$ points define an unique polynomial of degre $n$.
fig, ax = plt.subplots()
f = lambda x : (2 * x**3 - 2 * x**2 + 1) % 7
plot_function_in_finite_field(f, title="$2 \cdot x^3 - 2 \cdot x^2 + 1 mod 7$", ax=ax)
ax.plot([-7, 0, 7], [f(-7), f(0), f(7)], 'rD')
fig.show()
By $n$ points pass $p$ polyomials of degree $n$.
fig, ax = plt.subplots()
b = 0
d = 1
c = lambda a : -100 - 7**2 * a
P = lambda a : (lambda x: (a * x**3 + b * x**2 + x * c(a) + d) % 7)
for i in range(-12, 12, 3):
plot_function_in_finite_field(P(i), ax=ax)
p = P(1)
ax.plot([-7, 0, 7] , [p(-7), p(0), p(7)], "ro")
ax.set_title("Polynomials passing through $(-7, 1), (0, 1), (7, 1)$")
fig.show()
back to Shamir's secret sharing
If peter would have choosen polynomials in $\mathbb{Z}/p\mathbb{Z}$ with $p$ big enough...
Didier could not have easely discarted some numbers
For Didier, a large $p$ in infinite even with the help of $aws$
[3] Password alternative
The objective of this sections is to present the idea of the article how to proof yourself, an article publish by Fiat and Shamir in the year of grace 1987.
Objective
The objective is to find a way to allow Alice to authenticate to Bob such that...
Alice can authenticate
Bob is sure that the Alice is really Alice
Bob cannot copy the credentials of alice in any way.
in the contect of a zero-knoledge proof...
Completness
Soundness
Zero-knowledge
how can we do that?
Bob and Alice exchange some information while they know they are talking to the each other (sign up)
In that exchange, Alice will tell Bob that she knows something, proof without giving Bob or anyone else any factual proof.
Each time Alice will authenticate, Alice will provide enough information to Bob to demonstrate that she knows the information but without giving any factual proofs.
quadratic residue
There are some problems that are easy to solve in $\mathbb{R}$ but very hard to solve in $\mathbb{Z}/n\mathbb{Z}$
quadratic residue
The quandratric residue of $x$ in $\mathbb{Z}/n\mathbb{Z}$ is an element $y$ such that $x^2 = y$
We say that $y$ is a quadratic residue if there exists $x$ such that $x^2 = y$
facts
not every elements are quadratic residue
It is hard to know if a number is a quadratic residue
It is easy to find a quadratic residue: just take a random $r$ and compute $r^2$
Proving ourselves with quadratic residues...
idea
The idea is that Alice will demonstrate to Bob that she knows that a certain element $x$ is a quadratic residue without giving $\omega$ such that $\omega ^2 = x$
protocol...
| Alice | Bob |
|---|---|
| chose a random $r$ | |
| sends $a = r^2$ | |
| send challenge 0 or 1 at random | |
| if challenge is 1 returns r | accept if $r^2 = a$ |
| if challenge is 0 returns $r\cdot\omega$ | accept is $(r\cdot\omega)^2 = a \cdot x$ |
completeness: If Alice plays the game, she will be to proof that she is herself with probability 1
soundness: Bob as a probablylity $1/2$ to catch a cheeter
zero-knowledge: Proof by intimidation
